The Holosun IRIS-GR4 is a compact, advanced quad-function aiming and illumination system featuring a co-aligned visible green laser, infrared (IR) aiming laser, 60mW VCSEL-based IR illuminator, and a high-output white light delivering 1,000 lumens and 25,000 candela.

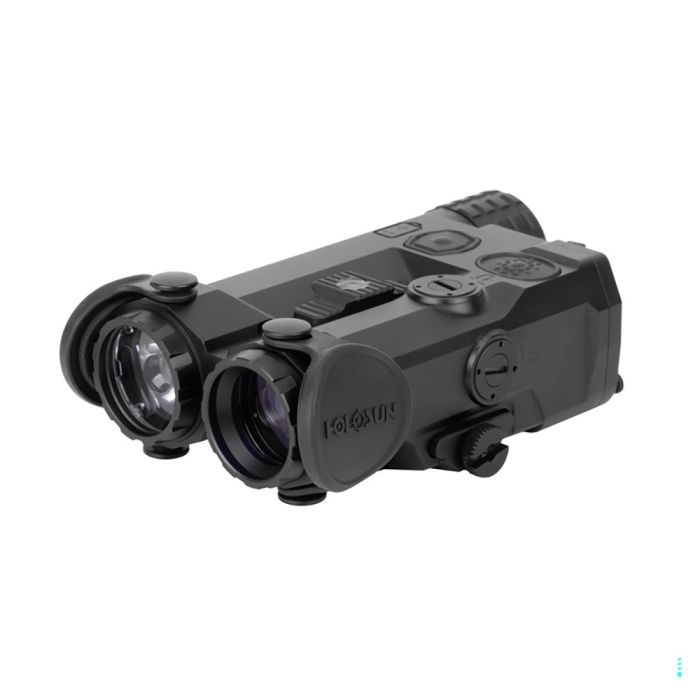

Holosun IRIS-GR4 - Compact & Rugged Laser & Illumination System
The Holosun IRIS-GR4 is a compact, advanced quad-function aiming and illumination system engineered to meet the demands of modern professionals and enthusiasts alike. Precision-machined from 7075-T6 aluminum, the redesigned housing is 43% lighter, 29% lower, and 28% narrower than the legacy LS420, offering superior ergonomics without compromising structural integrity—ideal for integration on PDWs, SBRs, and standard rifle platforms.
Quad-Function Lasers, IR Illuminator & White Light
At its core, the IRIS-GR4 combines a co-aligned visible green laser, infrared (IR) aiming laser, 60mW VCSEL-based IR illuminator, and a high-output white light delivering 1,000 lumens and 25,000 candela. This integration allows operators to transition seamlessly between daylight aiming, night vision engagements, and high-intensity white light use. The co-alignment of the lasers simplifies zeroing—users can calibrate both IR and VIS lasers simultaneously using the visible laser in daylight conditions, ensuring consistent point-of-aim across environments.
Adjustable VSCEL IR Illuminator & Ambidextrous Controls
A key feature of the IRIS-GR4 is its top-mounted IR beam divergence slider, which enables on-the-fly adjustment of the IR illuminator's beam pattern from wide flood to tight spot—optimized for performance across a range of shooting needs. Dual independent fire buttons offer tactile, ambidextrous control of laser and light functions, while the updated rear-positioned power and mode selector provides streamlined controls.
Remote Activation & Dual Power Options for Field Reliability
The included three-button remote switch connects via a Crane plug and offers a visible laser override function for rapid activation. For versatile power options, the IRIS-GR4 supports a rechargeable 18650 battery and dual CR123A batteries (included), providing dependable power in any operational setting.
FITMENT:
Direct Mount: Picatinny
FEATURES:
Quad-Function Laser and Illumination System Integrated green aiming laser, IR aiming laser, IR VCSEL illuminator, and high-output white light provide maximum versatility across day and night environments.
High Visibility Green Laser 520nm Class 3R green laser provides a crisp and highly visible aiming point for daylight use and simplified zeroing.
Infrared Aiming Laser 800–880nm Class 1 IR laser delivers precise aiming capability when operating with night vision devices.
High Output IR VCSEL Illuminator 60mW IR VCSEL illuminator enhances target identification and environmental awareness in low-light and no-light conditions.
Adjustable IR Beam Divergence Top-mounted slider allows rapid adjustment from wide flood to tight spot for optimal illumination at varying distances.
Integrated 1,000 Lumen White Light High-output white light produces 1,000 lumens and 25,000 candela for powerful visible illumination when needed.
Co-Aligned Laser Zeroing System Visible and IR lasers are co-aligned, allowing both systems to be zeroed simultaneously using the visible laser during daylight.
Advanced Control Interface Independent fire buttons and rear power selector provide intuitive control over laser and illumination functions.
Remote Switch with VIS Override Included three-button Crane plug pressure pad allows remote activation with dedicated visible laser override capability.
7075-T6 Aluminum Rugged Housing Hard anodized aluminum construction provides excellent durability while maintaining a compact, lightweight footprint.
Flexible Power Options Compatible with the included USB-C rechargeable 18650 battery or dual CR123A batteries for adaptable field power.
IPX8 Waterproof Construction Fully sealed housing protects internal electronics from water exposure and harsh environmental conditions.
