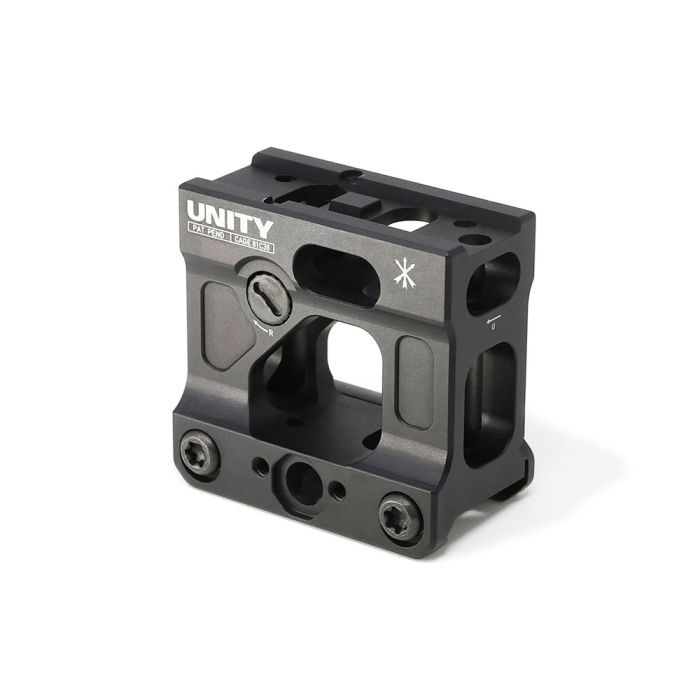

Unity Tactical FAST™ Tall Optic Micro Mount

The FAST™ Micro mount features built-in standard height back up iron sights that keep weapons uncluttered, without reducing capability.  Both front and rear BUIS are completely adjustable for windage and elevation. The front sight post can be removed so that the rear BUIS aperture can be used with a traditional front sight such as our FUSION fixed or folding sights  (if present), creating a more conventional sight radius. However, the built in front/rear BUIS is perfect for backup on super short PDW/SMG platforms where rail space is critical for mounting lights and lasers.

Designed for Aimpoint® Micro (H1, H2, T1, T2, CompM5) and other optics with Aimpoint® Micro footprint, such as those found on many Sig Sauer®, Holosun™, Primary Arms®, and Vortex Optics® platforms. NOTE: DOES NOT FIT AIMPOINT® COMP M5S OR M5B.

It comes standard with a two cross bolt rail clamp or can be retrofitted with the FAST™QD (Quick Detach) Lever.

FAST™ is a series of optic mounting solutions that provides end users with a quicker sight picture than standard height mounts. FAST™ mounts position most optics at a 2.26” optical centerline from the rail, which allows for more rapid visual processing of the battlefield by ensuring an ergonomically correct heads-up posture. Further, they provide faster and easier dot/reticle acquisition while wearing night vision goggles, protective masks, plate carriers and other gear.

Height:

• 2.26″ to Optical Centerline

Compatability:

• Aimpoint® Micro (H1, H2, T1, T2, CompM5)
• Vortex® Optics Crossfire
• Sig Sauer® Romeo4T
• Holosun 403 / 503 / 515 / 530

BUIS:

• Fully Adjustable Front / Rear

Mount Type:

• 2 Cross Bolt Rail Clamp
• FAST™ QD Lever Compatible (Sold Separately)

Specifications:

• Dimensions (in): 1.4 X 2.2 X 2.1
• Dimensions (cm): 3.6 X 5.6 X 5.3
• Weight:  3.5 oz. (99.2g)
• Material:  7075-T6 Aluminum
• Coating:  Type III Hardcoat Anodized

*Note: "FDE" is used throughout Unity Tactical's catalog to reference a spectrum of colors that include tan, brown, bronze, earth, and everything in between. Due to the chemical process that takes place during Type III Hardcoat, the final finish can vary from part to part (even parts done in the same batch). Therefore, your “FDE” product may vary from other parts from UNITY and other companies, and may vary from the photos shown online.

View Product Instructions
