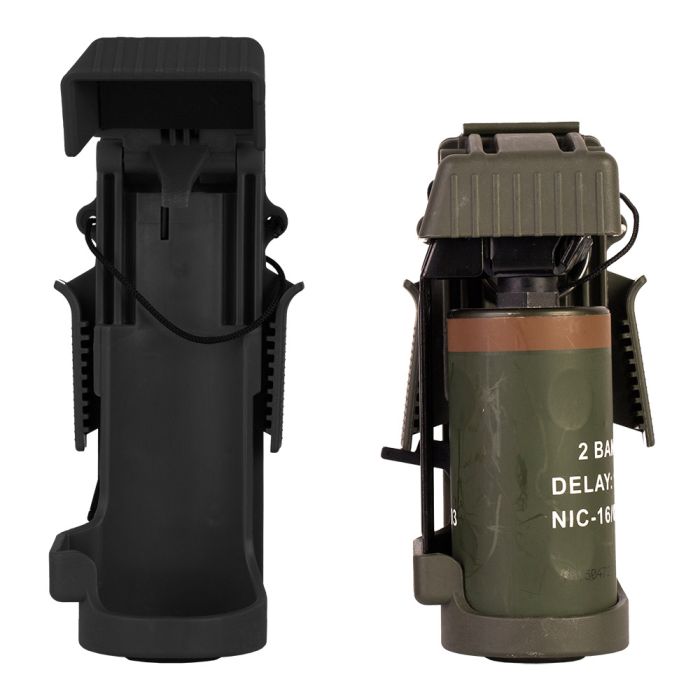

A.C.S Flashbang Trigger Pouch for NICO / SFDI / FBG-Mk4

The A.C.S Flashbang Trigger Pouch for Rheinmetall NICO provides unparalleled safety and deployment speed compared to traditional pouches. Also compatible with the Royal Arms SFDI & FBG-Mk4 Training Flash Bangs.

Developed by Advanced Combat Solutions (A.C.S. INDUSTRIES), leading the industry in innovative, practical gear applications, the Advanced Combat Solutions Flashbang Trigger Pouch is a simplified method for safe, rapid, and efficient grenade carry and operation.  This quick-release, rigid grenade carrier enables safe, one-handed grenade extraction and detonation, contrary to the time consuming and complicated soft pouch carriers.  An exceptional and unique solution to address serious safety issues in various grenade handling, the ACS Trigger Pouch has 7 safety mechanisms making it the safest pouch available. The pouch is made of Mil-grade composite polymer, making it extremely durable.

Features:

• Made of Mil-grade Composite polymer
• Cuts the deployment time of a grenade by six times
• Deployment of the grenade (being able to extract the grenade) in a safe and quick manner without wasting critical time
• The Trigger Pouch allows the operative to extract a grenade in a one hand action, while keeping eyes on the threat and one hand on the operators weapon
• Left & Right-handed action
• Quick extraction/deployment with gloved hands.
• Safer than traditional pouches
• Multi-point safety system that covers and protects all critical parts of the grenade.
• Made in Israel

Instructions:

Attaching the Trigger Pouch to a vest or tactical belt:

• Select strategic area for placement on the vest accessible by both hands.
• Insert the vest clips behind the vest strips (clips can also be inserted between the stitches).
• To lock the Trigger Pouch on to the vest, pull each vest clip outwards until the clips click into place.
• Ensure that the Trigger Pouch is locked with the safety catch.

Loading The Trigger Pouch:

• To open the top cover, release safety catch and simaltaneously press side buttons.
• Thread the pull string through safety ring - do not remove the safety ring.
• Insert the grenade into the Trigger Pouch and verify that the lever (spoon) is secure in the lever (spoon) protector.
• Make sure that the safety ring is secure in the ring protector.
• Close the top cover.
• Thread the pull string around the hook on the back of the Trigger Pouch; make sure it is secure.
• Lock the side buttons by lifting the side safety catch.

Operating Instructions:

• Wrap hand around the grenade placing fingers on the side buttons.
• Click down safety catch, pressing the side buttons simultaneously.
• Wrap hand around the grenade – ensuring you’re holding the safety lever (spoon).
• Pull the grenade away from the Trigger Pouch in one strong and smooth pull – keeping the grenade level with the pouch.

*PLEASE NOTE - The grenade is now in your hand without the safety pin and is ready to be thrown.*

To safely remove an unused grenade from the Trigger Pouch:

• Disconnect the pull string from the hook at the back of the Trigger Pouch.
• Open the safety catch and simultaneously press the side buttons.
• Remove the pull string from the grenades safety ring.
• Remove the grenade.
• Close the top cover.

General Precautions:

• When attaching the Trigger Pouch to the vest make sure the connectors are secured and locked.
• When threading the pull string through the safety ring, do not pull the ring.
• Make sure that the safety catch is facing up and locks the buttons.
• Do not block the top cover.
• When extracting the grenade from the Trigger Pouch ensure that your hand is wrapped around the lever (spoon).
• As soon as the grenade is pulled from the device without the pull ring it is activated and ready to be thrown.

Maintenance:

• Do not clean the Trigger Pouch when a grenade is in it.
• The Trigger Pouch should be cleaned after use with pressurized air, damp rag or running water (under tap).
• Do not use any cleaning agents other than water.
• Do not cut or make any change to the Trigger Pouch.
