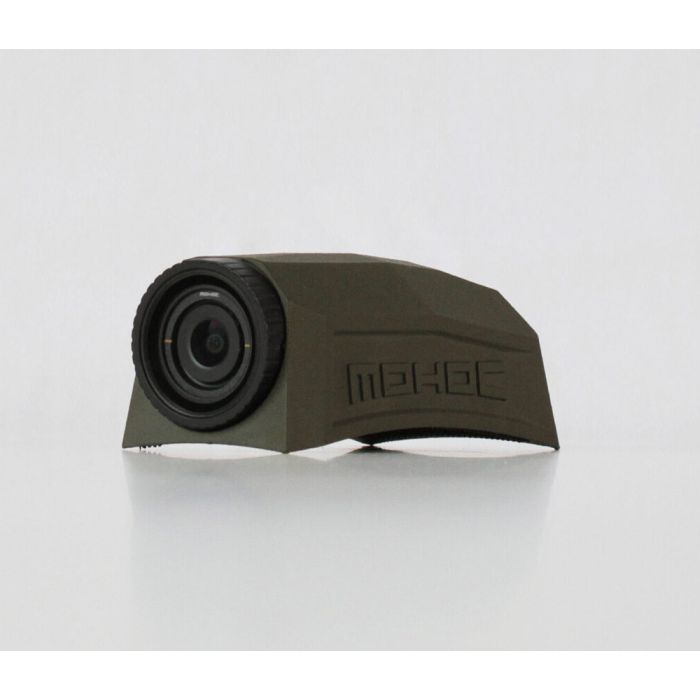

Designed as a customizable platform, MOHOC® 2 can be tailored to match many C5ISR requirements. The MOHOC® 2 Camera is built to stream real-time video over mobile ad hoc networking (MANET) radios. Created as a live sensor for the hyper-enabled operator, it maximizes situational awareness at the tactical edge.
The MOHOC® 2 IP outputs IP video compatible with radios and networks that accept IP video.
MOHOC believes the world’s toughest warfighters deserve equipment worthy of their missions. Responding to the evolving needs of the Hyper-Enabled Operator and Integrated Tactical Network, the MOHOC® 2 Camera delivers real-time video streaming over handheld radios.
The camera is smaller, lighter, and simpler to operate than the original MOHOC®, but with the same revolutionary low-profile, helmet-contoured form factor and military-grade ruggedization. A radically improved sensor offers incredible low-light and infrared capability, combining the benefits of day and IR cameras into a single model. Designed as a customizable platform, MOHOC® 2 can be tailored to match many C5ISR requirements.
All MOHOC® 2 cameras are available for purchase in Black, Tan, and MIL Green.
MOHOC® 2 cameras are built to order, so estimated lead time is 30 days after receipt of order.
Features:
20x Improved Low-Light Sensitivity
Plug-and-Play Radio Integration- connects directly to IP based radios and networks via Ethernet cable (RJ45)
MIL Spec cables and ports – customized cables and connectors available on request to integrate directly to different radio or network requirements
Outputs 3 different video streams that are customizable (2 x h.264, 1 x MJPEG)
What's Included:
(1) MOHOC® 2 IP Camera
(1) Power/Data cable with RJ45 (Ethernet Connector) for data and DC connector for power
(2) Industrial Strength Black VELCRO® Brand Loop Strips
(1) Camera bag
General Specifications:
IMAGE SENSOR: 1/2.8” Color CMOS (back illuminated pixels for ultra-low light)
MIN. ILLUMINATION: 0.006Lux @F2.0, 0.0002(DSS on) in visible light
WATERPROOF RATING: IP64 standard connectors, IP68 (10m for 30min) connectors optional
POWER REQUIREMENT: DC external power source
CONNECTION: Cabled
LOW LIGHT: Auto adjustment for optimal recording in low light environments
ROTATING LENS: Manually rotate lens up to 190º to record horizontal video from any mounting position
SECURE ATTACHMENT: CurvelockTM base designed to match helmet curvature, provides unprecedented low-profi le, secure attachment via Velcro® direct to helmet or helmet cover.
IMAGE SETTINGS/CONTROL: Day & Night Mode(Auto/Color/B&W), Auto Gain Control, DSS, WDR, DNR, BLC, Auto Exposure, Image Effect(Gamma/Defog/Privacy/Motion Detection), Digital Image Stabilization (DIS)
OPERATING TEMP.: 14ºF~131ºF (-10ºC~+55ºC)
DIMENSIONS: 80mm (3.2in) long x 41mm (1.6in) wide x 32mm (1.2in) tall
