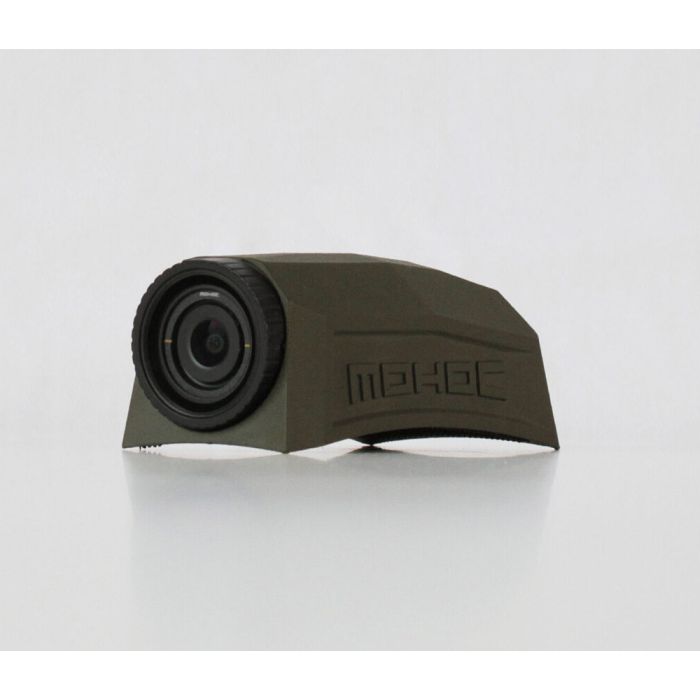

The MOHOC® 2 (USB-UVC model) is built for radios that accept USB-UVC video and power/data hubs such as Glenair STAR-PAN™.
MOHOC believes the world’s toughest warfighters deserve equipment worthy of their missions. Responding to the evolving needs of the Hyper-Enabled Operator and Integrated Tactical Network, the MOHOC® 2 Camera delivers real-time video streaming over handheld radios.
The camera is smaller, lighter, and simpler to operate than the original MOHOC®, but with the same revolutionary low-profile, helmet-contoured form factor and military-grade ruggedization. A radically improved sensor offers incredible low-light and infrared capability, combining the benefits of day and IR cameras into a single model. Designed as a customizable platform, MOHOC® 2 can be tailored to match many C5ISR requirements.
All MOHOC® 2 cameras are available for purchase in Black, Tan, and MIL Green.
MOHOC® 2 cameras are built to order, so estimated lead time is 30 days after receipt of order.
Features:
20x Improved Low-Light Sensitivity
Plug-and-Play Radio Integration- connects directly to power/data hubs such as Glenair STAR-PAN™
MIL Spec cables and ports – available as a fixed standard USB cable tail that ends in a Male USB Type A or as a Glenair 807 6 Pin Male out the camera back
What's Included:
(1) MOHOC® 2 USB-UVC Camera
(2) Industrial Strength Black VELCRO® Brand Loop Strips
(1) Camera bag
General Specifications:
IMAGE SENSOR: 1/2.8” Color CMOS (back illuminated pixels for ultra-low light)
MIN. ILLUMINATION: 0.006Lux @F2.0, 0.0002(DSS on) in visible light
WATERPROOF RATING: IP64 standard connectors, IP68 (10m for 30min) connectors optional
POWER REQUIREMENT: DC external power source
CONNECTION: Cabled
LOW LIGHT: Auto adjustment for optimal recording in low light environments
ROTATING LENS: Manually rotate lens up to 190º to record horizontal video from any mounting position
SECURE ATTACHMENT: CurvelockTM base designed to match helmet curvature, provides unprecedented low-profi le, secure attachment via Velcro® direct to helmet or helmet cover.
IMAGE SETTINGS/CONTROL: Day & Night Mode(Auto/Color/B&W), Auto Gain Control, DSS, WDR, DNR, BLC, Auto Exposure, Image Effect(Gamma/Defog/Privacy/Motion Detection), Digital Image Stabilization (DIS)
OPERATING TEMP.: 14ºF~131ºF (-10ºC~+55ºC)
DIMENSIONS: 80mm (3.2in) long x 41mm (1.6in) wide x 32mm (1.2in) tall
